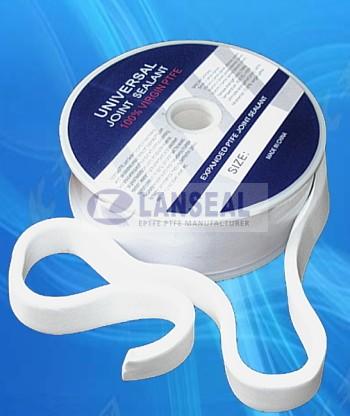

Expanded PTFE Joint Sealant(Expanded ptfe tape ) is a kind of novel material which be adopted unique handicraft.Expanded PTFE Joint Sealantis a white pure ptfe product with continuous banding, it has good flexibility peculiarity, encapsulate resilience, resistant , resistant high&low temperature and excellent resistant corrosion, no aging, lubrication itself.The sealed Peculiarity excellence and install it expediency. It suitable for field of petrochemical, medicine, electron, nuclear power, vessel, etc.Expanded PTFE Joint Sealantalso suitable for large caliber equipment which the precision is crudity on face and the shape is not regular. It suitable for strong corrosion and the fluid which is not allowed any tainted .The excellent peculiarity: It has high encapsulate peculiarity and easy to stuff up the cave and gutter on the face, close up the side, it also can expanded when it Passed through tension. so the sealing more strong when the inside pressure more high.
| expanded ptfe joint sealant |
Expanded PTFE Joint Sealant(Expanded ptfe tape ) is a kind of novel material which be adopted unique handicraft.Expanded PTFE Joint Sealantis a white pure ptfe product with continuous banding, it has good flexibility peculiarity, encapsulate resilience, resistant , resistant high&low temperature and excellent resistant corrosion, no aging, lubrication itself.The sealed Peculiarity excellence and install it expediency. It suitable for field of petrochemical, medicine, electron, nuclear power, vessel, etc.Expanded PTFE Joint Sealantalso suitable for large caliber equipment which the precision is crudity on face and the shape is not regular. It suitable for strong corrosion and the fluid which is not allowed any tainted .The excellent peculiarity: It has high encapsulate peculiarity and easy to stuff up the cave and gutter on the face, close up the side, it also can expanded when it Passed through tension. so the sealing more strong when the inside pressure more high.

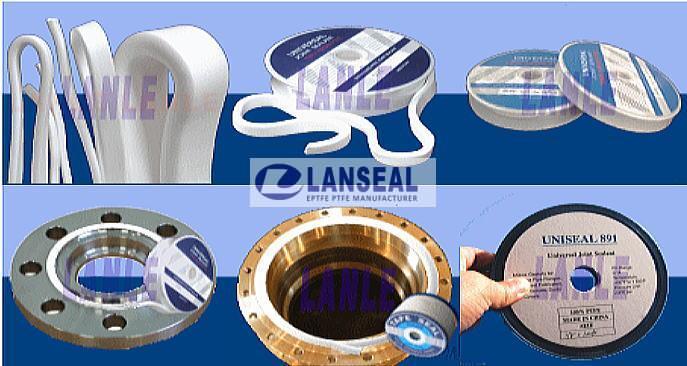

EXPANDED PTFE JOINT SEALANT APPLICATIONS:
FlangesSteam Vessel FlangesFume DuctsManhole CoversConcrete LidsCeramic JointsGlass JointsHydraulic and Pneumatic SystemsHeat ExchangersWater SystemsFibreglass Reinforced Plastic VesselsVentilation Duct and Fan HousingPump or Compressor Housing Flanges
EXPANDED PTFE JOINT SEALANT SPECIFICATIONS:
| Width/mm | 3mm | 5mm | 7mm | 10mm | 14mm | 17mm | 20mm | 25mm |
| Inch | 1/8" | 3/16" | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" |
| Thickness/mm | 2.0mm | 2.0mm | 3.0mm | 4.0mm | 5.0mm | 5.0mm | 7.0mm | 8.0-10mm |
| Length/Meter | 30 | 30 | 15 | 15 | 10 | 10 | 50 | 50 |
MAIN PROPERTIES:
PropertiesUnitResultTensile strength (min)MPa7.5Ultimate elongation (min)%150suitable temperatureoF-450oF to +6000F
| ITEM | DATA |
| Work Temperature | -268～280℃ |
| Work Pressure | ≤8Mpa Liquid |
| Work Medium | Except molten metal, liquidand gas of fluorine |
| Meet（FDA CFR177.1550) | |
| Tensile Strength | ≤10 MPA |
| Bolt Pressure | 8-20Mpa（3-25mmWidth） |
| Density | 0．7~0.8g/cm3 |
| Elongation | ≥20% |
| Compressibility | ≤40% |
| volatileness | ≤1.0% |
Other names of this product:Tape PTFE , PTFE Tape , PTFE Sealant Tape , PTFE Joint Tape , PTFE Joint Sealant Tape , seals PTFE , PTFE sealing , PTFE gasket,Expanded PTFE Universal Joint Sealant
